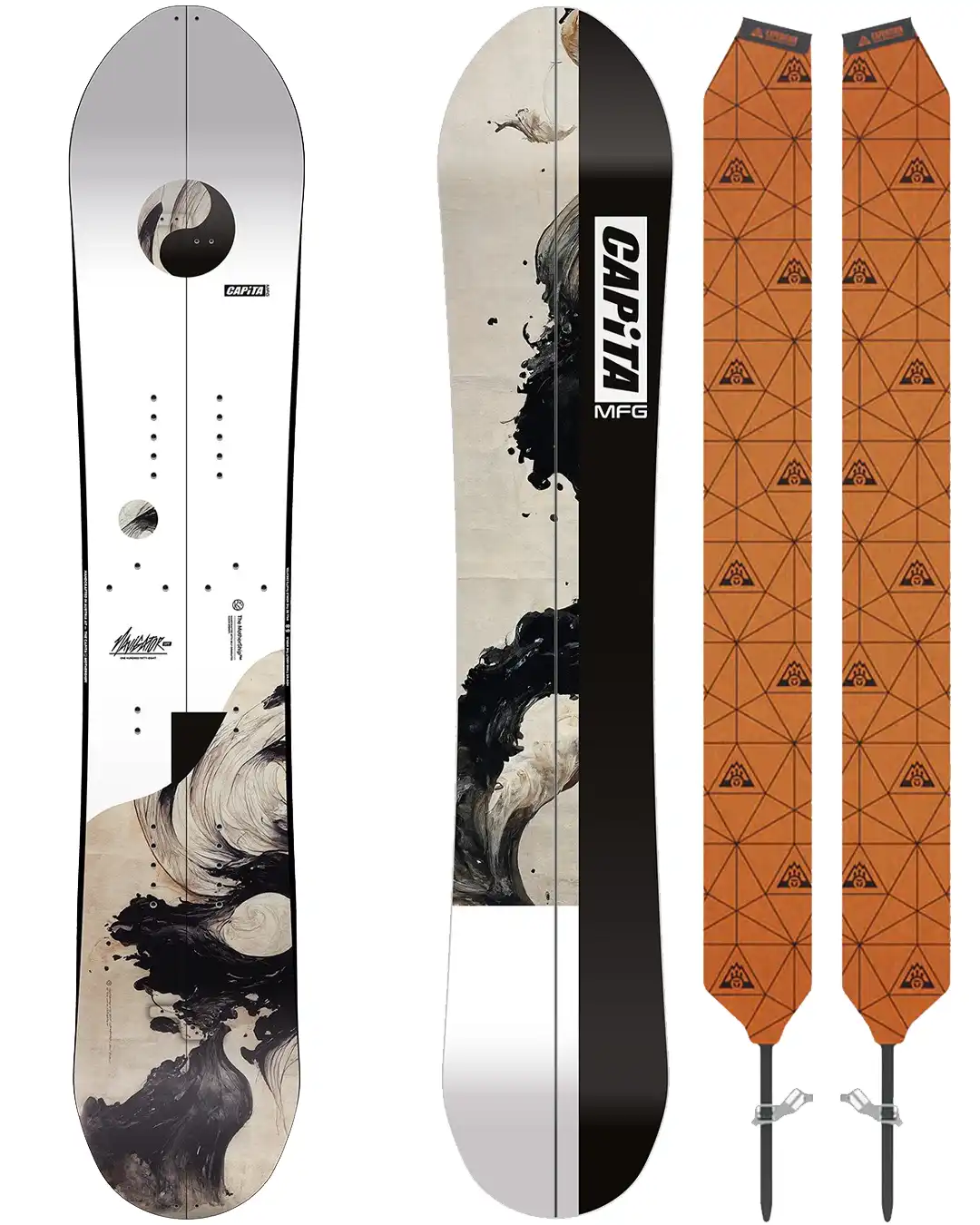

SPLIT BOARD / POWDER + RESORT / DIRECTIONAL / HYBRID CAMBER

The Navigator, known as a powder-annihilating favorite of the CAPiTA collection is again available in a factory-direct split. This side-country slayer will help unlock worlds of new terrain out of bounds or access a skin up your favorite resort line when uphill travel is allowed. This series provides lightweight, controlled ascents with camber underfoot, and endless float and smooth turns on the descent thanks to its sinking tapered tail and parabolic sidecut. The Navigator Split is a value-drive tool for unlocking endless pow stashes and epic-level experiences.

This series combines incredible performance with its Ascend 2 Split Core™, Technora™ Flax Boosters and a new HyperDrive™ base while its value is unmatched as it comes factory direct with Union Expedition Skins by Montana™ and Union Pro Clips and Hooks.

Details

Rocker Type: Resort V2 Directional: Raised camber platform through the inserts with elevated contact points for better float in powder and Flat Kick tip and tail arcs for faster and more aggressive transitions.

Flex: 6/10.

Shape: Directional 0.8" Setback, Parabolic Radial Tape, Parabolic Radial Tape

Core: 3D Ascend 2 Split Core

Laminates: Holysheet™ Tri/Tri Fiberglass, Magic Bean Resin, 2 x 30mm Technora™ Flax Boosters

Sidewalls: Full ABS1000

Base: HYPERDRIVE™ Base | Die-cut + Digital Print

Edges: 360˚ HRC48 Steel Edges

Topsheet: Digital Print + Metallic Underlay

Binding Compatibility: Stainless Steel 2 x 4 Inserts, Standard Splitboard pattern

Additional Features: Included Union Expedition Skins by Montana, Union Pro Clips and Hooks

Specs

Terrain: Splitboarding
Ability Level: Intermediate-Advanced
Rocker Type: Rocker/Camber/Rocker
Shape: Directional
Warranty: 2 Years

Size Chart

Size	154	158	161	164
Effective Edge (mm)	1182	1195	1222	1238
Tip Width (mm)	301	305	310	315
Waist Width (mm)	252	256	260	264
Tail Width (mm)	290	293	297	301
Sidecut Radius (m)	8.0 / 6.8 / 8.0	8.1 / 7.0 / 8.1	8.3 / 7.2 / 8.3	8.5 / 7.4 / 8.5
Stance Setback (in)	0.8	0.8	0.8	0.8
Stance Range (in)	21	22	23	23
Stance Range (mm)	533	539	584	584
Rider Weight (lbs)	130 - 190	150 - 200	160 - 210	170 - 220
Width	Regular	Regular	Regular	Regular

CAPITA

Navigator Splitboard 2026

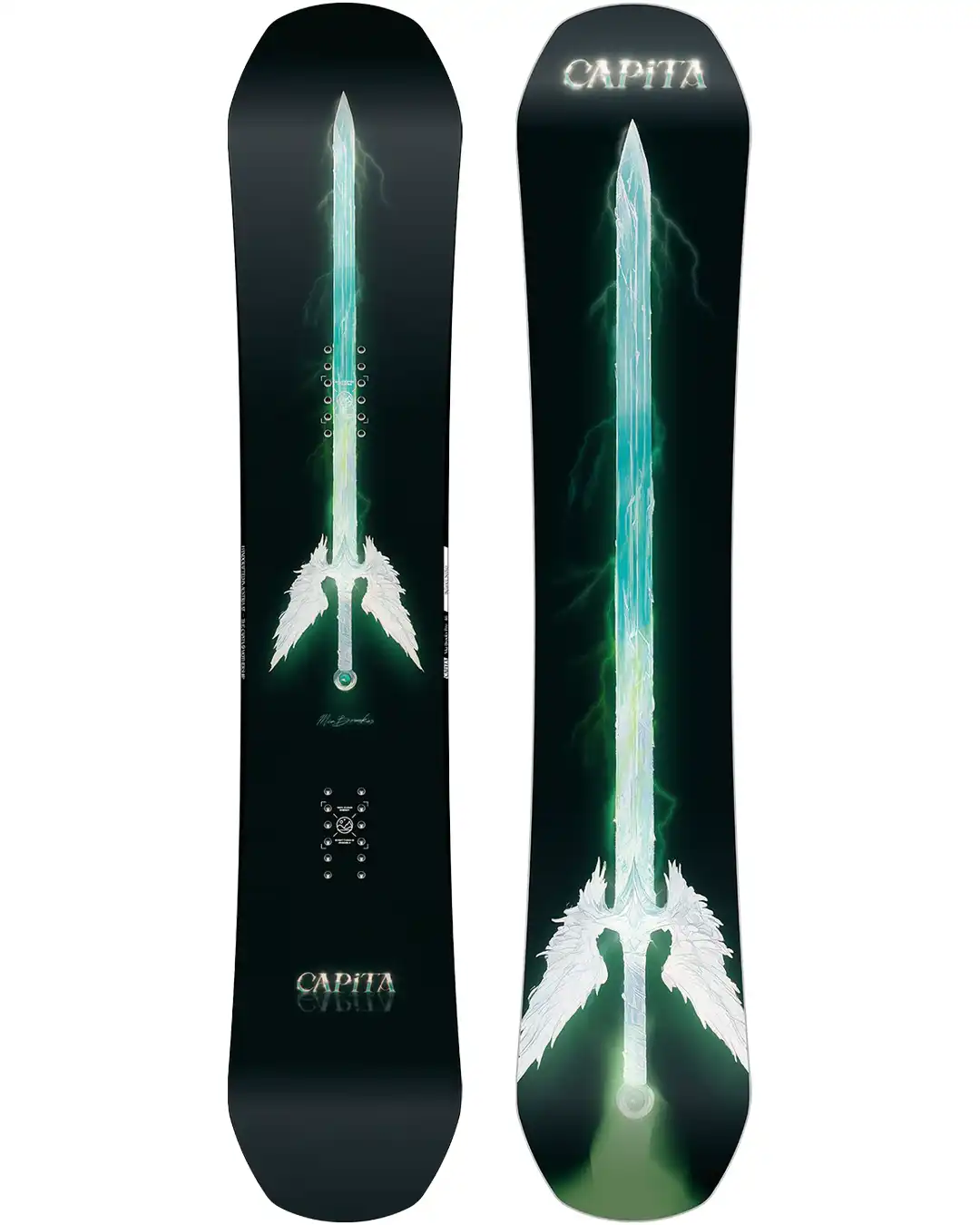

Mia Brooks Pro Snowboard 2027
